Electric - Excavator

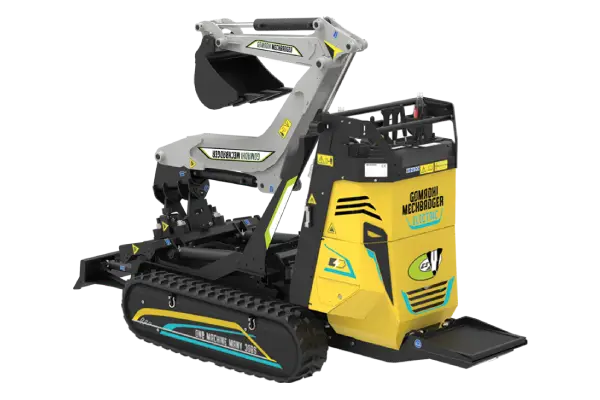

Gomadhi MECHBADGER Electric Excavator
The Gomadhi Mechbadger Excavator Is Built For Versatility And Precision, Capable Of Working In Tight Spaces. Its Compact Design Makes It Ideal Allowing Operators To Manoeuvre It With Ease. The Ergonomic Controls Ensure That Operators Can Work Efficiently And With Great Accuracy, Making It An Excellent Choice For Both Residential And Commercial Excavation Tasks.
Technical Specifications
| Motor | 7KW - 2600 rpm | |
| Maximum Current | 175 A | |
| Voltage | 48 VDC | |
| Battery | 150 Ah | |
| Gradeability | 70% (35°) | |
| Travel Motors | 20 L/min | |
| Tractive Force | 10003 N | |
| Pump Services | 15 L/min | |
| Pressure Services | 150 bar | |
| Weight (PU + Equipment) | 905 Kg (614 kg + 291kg) | |
| Digging Depth | 1850 mm | |
| SAE plan | 1590 mm | |
| Speed | 3.5 Km/h | |
| Digging Height | 2895mm | |
| Digging Radius | 2870mm | |
| Max Unloading height | 2090mm | |
| Charging Time 220v/380v(With station) | 5hrs / 1.5hrs | |
| Battery Withstand timing For full load working Condition | 3.5hrs | |
| Battery Type | Lithium-ion Battery | |
| Ground clearance | 136mm | |
| Max hydraulic oil tank cap | 33L | |
| Track Width | 790mm | |
| Track Tension | Spring and Grease | |
| Rotating angle | 82°+ 82° | |
| Breakout Force | 8.8kN / 897kg | |
| Bucket Capacity/Width | 0.01m³ / 17Kg | 200mm |
| 0.017m³ / 30Kg | 300mm | |
| 0.035m³ / 60Kg | 600mm | |
Features
- Simple and immediate ignition: thanks to the hydrostatic drive system, no frequent gear changes are required and the user can concentrate entirely on his work. Ideal for rental companies or if the user is replaced frequently.
- Hydraulically activated, pilot controlled forward and reverse lever for precision operation.
- The hydraulically activated traction system and working hydraulics can be activated independently.
- Reduction of maintenance and service costs thanks to the low-wear drive system.
- Precious time can be saved during maintenance, resulting in cost savings, the electric motor does not need maintenance.
- Optimal service access to safely perform daily checkup procedures.
- Quick access to maintenance points.
- Tracked undercarriage with hydrostatic transmission.
- Rubber tracks made in monobloc structure with steel wire core and treated steel inserts.
- 100% ELECTRIC engine, air cooling; automatic key start.
- Manually operated hydrostatic transmission with triple gear pump and fixed displacement orbital motors.
- Steering by rotating the tracks.
- Ergonomic and cushioned operator platform.
Interchangeability
By configuring the Power Unit with a single piece of equipment, you will be able to purchase the equipment indicated below at any time, which can be quickly interchanged in less than 4 minutes, you will be able to use different complete machines with a single Power Unit.
Front Accessories
Teeth Bucket
Auger
