Electric - Scissor Lift

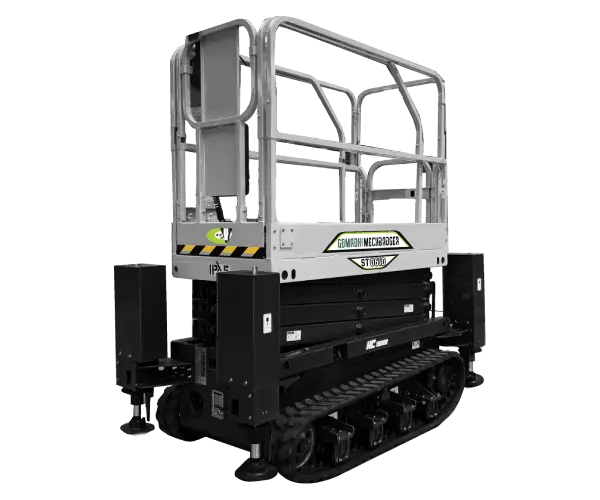

Gomadhi MECHBADGER Electric Scissor Lift
The Gomadhi Mechbadger Electric Scissor Lift Is A Versatile And Efficient Machine Designed For Working At Height With Ease And Safety. With Its Electric-Powered Operation, It's Ideal for Both Indoor and Outdoor Tasks Where Silent, Emission-Free Performance Is Crucial. Here's A Detailed Overview Of The MECHBADGER Electric Scissor Lift.
Technical Specifications
| Motor | 7KW - 2600 rpm |
| Maximum Current | 175 A |
| Voltage | 48 VDC |
| Battery | 150 Ah |
| Gradeability | 70% (35°) |
| Travel Motors | 20 L/min |
| Tractive Force | 10003 N |
| Pump Services | 15 L/min |
| Pressure Services | 150 bar |
| Weight (PU + Equipment) | 1795 Kg (614kg+1181kg) |
| Payload Capacity | 250 Kg |
| Working Height | 9200 mm |
| Speed | 4.5 Km/h |
Features
- Simple and immediate ignition: thanks to the hydrostatic drive system, no frequent gear changes are required and the user can concentrate entirely on his work. Ideal for rental companies or if the user is replaced frequently.
- Hydraulically activated, pilot controlled forward and reverse lever for precision operation.
- The hydraulically activated traction system and working hydraulics can be activated independently.
- Reduction of maintenance and service costs thanks to the low-wear drive system.
- Precious time can be saved during maintenance, resulting in cost savings, the electric motor does not need maintenance.
- Optimal service access to safely perform daily checkup procedures.
- Quick access to maintenance points.
- Tracked undercarriage with hydrostatic transmission.
- Rubber tracks made in monobloc structure with steel wire core and treated steel inserts.
- 100% ELECTRIC engine, air cooling; automatic key start.
- Manually operated hydrostatic transmission with triple gear pump and fixed displacement orbital motors.
- Steering by rotating the tracks.
- Ergonomic and cushioned operator platform.
Interchangeability
By configuring the Power Unit with a single piece of equipment, you will be able to purchase the equipment indicated below at any time, which can be quickly interchanged in less than 4 minutes, you will be able to use different complete machines with a single Power Unit.
